StarTech.com

StarTech.com VGA Wall Plate Video Extender over Cat5 - 1 Input Device - 1 Output Device - 984.25 ft Range - 2 x Network (RJ-45) - WUXGA - 1920 x 1200 - Twisted Pair - Category 6 - TAA Compliant

Category Range Extenders
STCSTUTPWALLA STCSTUTPWALLA
STCSTUTPWALLA STCSTUTPWALLA
STCSTUTPWALLA STCSTUTPWALLA
StarTech.com

StarTech.com VGA Wall Plate Video Extender over Cat5 - 1 Input Device - 1 Output Device - 984.25 ft Range - 2 x Network (RJ-45) - WUXGA - 1920 x 1200 - Twisted Pair - Category 6 - TAA Compliant

Item Code: STCSTUTPWALLA
Category Range Extenders
Manufacturer StarTech.com

Manufacturer-Brochure
User-Manual

Description

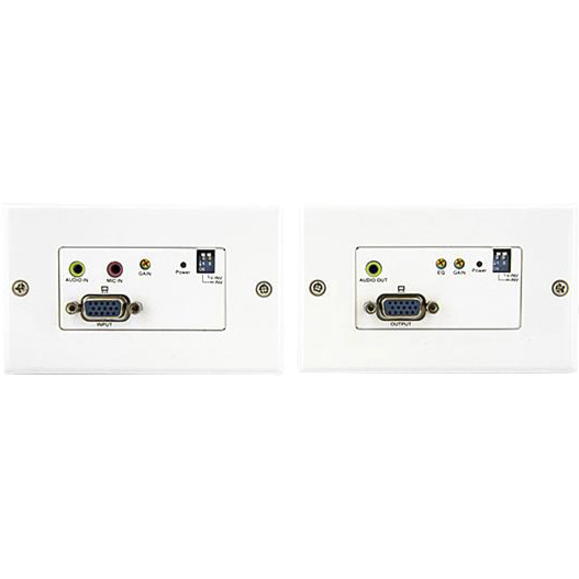

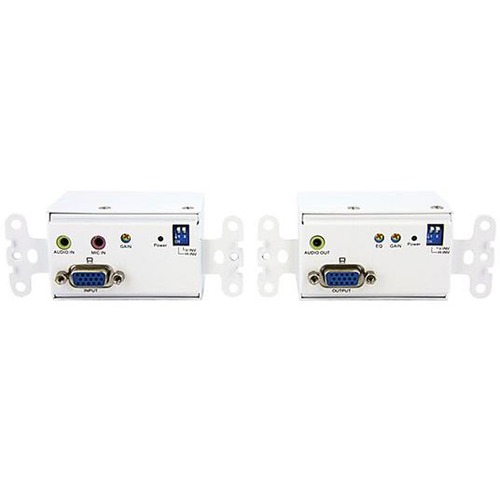

This VGA Wall Plate Cat5 Video with Audio Extender kit includes both transmitter and receiver units, allowing you to make out-of-the-way connections from a VGA video and audio source to a remote monitor location. The transmitter and receiver wall plates can be placed in a wall or ceiling gang for a cleaner, more professional VGA installation, supporting connection distances up to a maximum of 300m (950ft).

"I would highly recommend this to anyone or any business looking for an easy and more efficient way to present."
- bayreviews.com

Offering maximum versatility and convenience, the VGA wall plate kit is easy to install; simply wallmount the transmitter unit near the intended VGA source, then wallmount the receiver unit near the monitor/projector. The VGA transmitter and receiver units can then be linked using standard Cat5e or Cat6 cable to provide a high quality video and stereo audio extension while concealing the cable for a neatly placed installation.

Both VGA transmitter and receiver units use a 12V DC terminal block connector behind the unit that offers a more secure and economical installation; using Cat5/Cat6 cable to extend the VGA signal offers a cost-effective solution based on the broad availability of networking cable which is far more flexible than VGA cable, not to mention less expensive.

Unlike some video extension systems, our VGA extender wall plates also allow you to make use of an existing networking cable (Cat5, Cat6) infrastructure, eliminating the need to re-run cable in the event of an upgrade from VGA to another video standard, by simply swapping out the wall plates.
UNSPSC Code

45111815

Weight

2.6lb

Height

2.5in

Width

5.9in

Length

11.7in

Brand

StarTech.com

Brand Name

StarTech.com

Category

Range Extenders

Certifications & Standards

  • CE
  • FCC

Color Family

White

Connectivity Technology

Wired

Environmentally Friendly

Yes

Graphics Modes

WUXGA

Input Voltage

12 V dc

Limited Warranty

2 Year

Manufacturer

StarTech.com

Manufacturer Part Number

STUTPWALLA

Manufacturer Website Address

http://www.startech.com

Maximum Operating Distance

984.25 ft

Maximum Video Resolution

1920 x 1200

Media Type Supported

Twisted Pair

Microphone

Yes

Network (RJ-45)

Yes

Number of Input Devices Supported

1

Number of Network (RJ-45) Ports

2

Number of Output Devices Supported

1

Package Contents

  • 1 x Transmitter
  • 1 x Receiver
  • 1 x Terminal Block for Power Adapter
  • 1 x Power Adapter
  • 1 x Instruction Manual

Packaged Quantity

1

Product Color

White

Product Material

Steel

Product Name

VGA Wall Plate Video Extender over Cat5

Product Type

Video Extender Transmitter/Receiver

Receiver Depth

4.10"

Receiver Height

1.50"

Receiver Weight (Approximate)

3 lb

Receiver Width

1.70"

TAA Compliant

Yes

Transmitter Depth

4.10"

Transmitter Height

1.50"

Transmitter Weight (Approximate)

3 lb

Transmitter Width

1.70"

Twisted Pair Cable Standard

Category 6

- +
Starting from
$375.21 / EA
/
LIST PRICE $375.21
%
- +
